Habey USA 12″ Panel Pc Intel Atom D525 Nvidia ION Touchscreen

HABEY USA, a popular manufacturer of embedded computer and digital signage media products in USA announces their new 12” Touchscreen Intel Dual Core Atom Nvidia ION Panel PC. Features include: 16:9 widescreen 12″ touchscreen, HDMI+VGA, 1 Serial Port, 2 mini-PCIe, 4 USBs, 1 eSATA, 1 LAN, 1.3 megapixel camera, and a 100×100 vesa mounting holes for easy installation. This Pc is available in Amazon.com at $800 price tag. Checkout the some more detail and press release bellow for more.

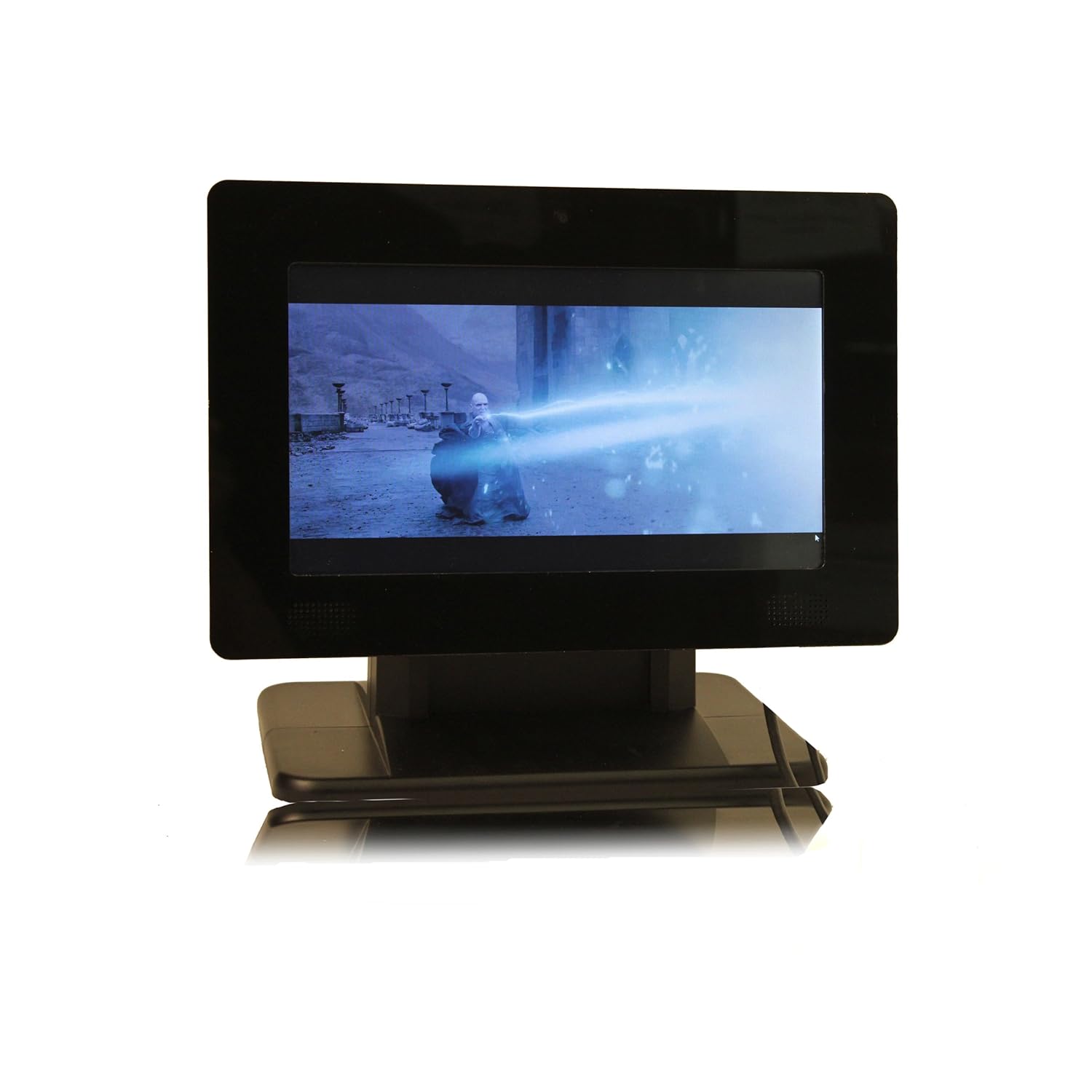

http://ecx.images-amazon.com/images/I/81XU75--s5L._AA1500_.jpg

Technical Details:

  • Hardware Platform: PC
  • Processor: Intel Atom
  • Number of Processors: 1
  • RAM Type: DDR3 SDRAM
  • Memory Slots: 2 DDR3 SODIMM

Hard Drive

  • Type: Serial ATA

Graphics and Display

  • Interface: Integrated

Cases and Expandability

  • Weight: 7.3 pounds

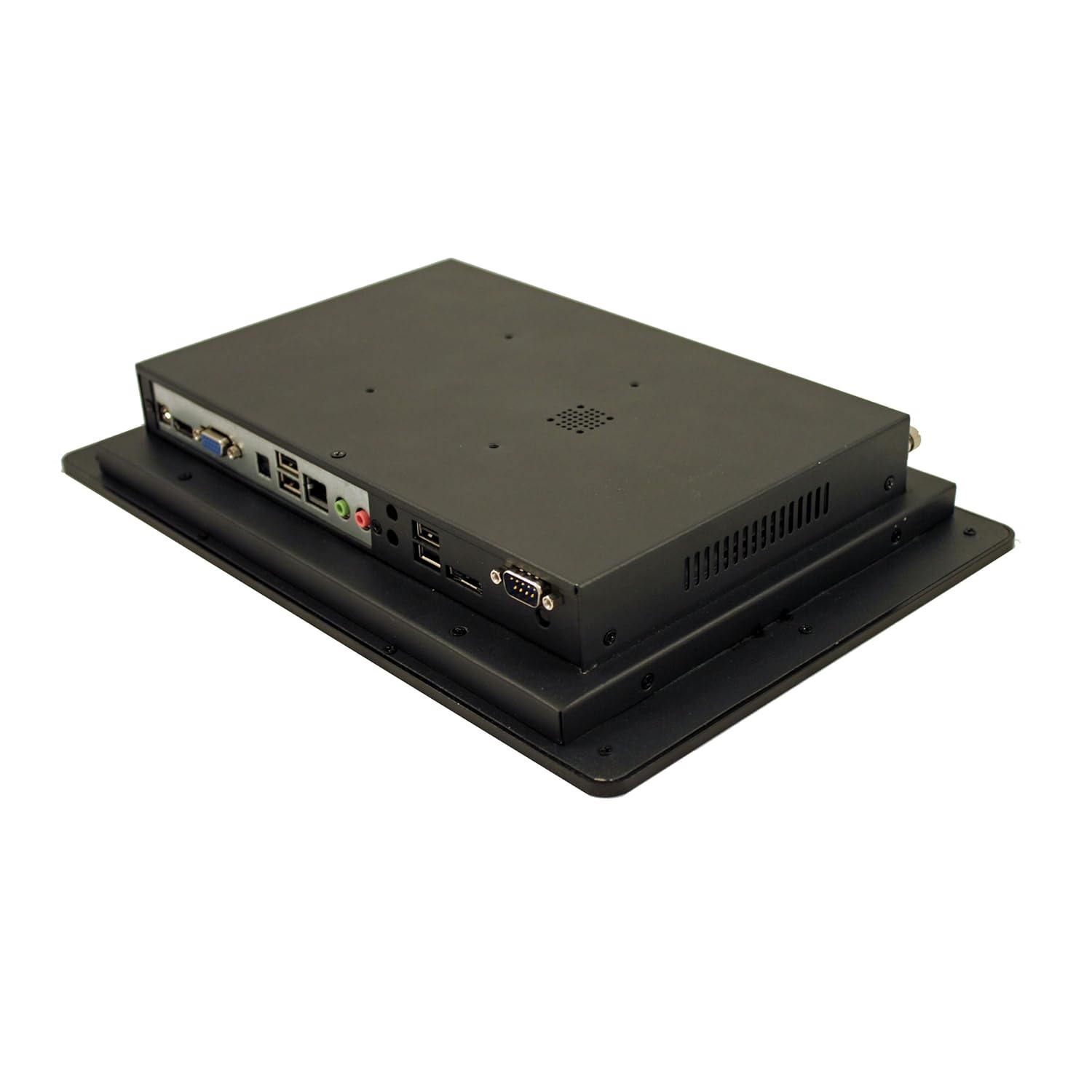

http://ecx.images-amazon.com/images/I/710AJhgSZ2L._AA1500_.jpg

Press Release

HABEY USA, a leading manufacturer of embedded computer and digital signage media products, today announces its new 12″ Touchscreen Intel Dual Core Atom Nvidia ION Panel PC.

Features include: 16:9 widescreen 12″ touchscreen, HDMI+VGA, 1 Serial Port, 2 mini-PCIe, 4 USBs, 1 eSATA, 1 LAN, 1.3 megapixel camera, and a 100×100 vesa mounting holes for easy installation.

Equipped with the efficient Dual Core 1.8GHz Atom and Nvidia ION GT218 graphics card with dedicated 512MB video memory, the PPC-6512 displays full screen blu-ray videos while consuming less than 30W. The 12″ widescreen (16:9) carries a 1.3 megapixel camera located on top of the monitor and its slim design with vesa mounts allow for flexible installation in space constraint environments. This green touchscreen Panel PC carries a 2.5″ removable hard drive bay fastened by metallic thumb screws for easy removal and can output dual independent displays via VGA and HDMI with max resolution of up to 2560×1600. Providing high I/O flexibility, the bottom panel includes 4 USBs, 1 eSATA, 1 LAN, S/PDIF HD digital audio, and dual internal mini-PCI Express slots for internal wireless, TV tuner, 3G modules, etc. Unique for its serial connector on the bottom panel, the PPC-6512 allows for home automation control and automatic control of peripheral devices suitable for applications from home theaters to digital signage. The PPC-6512 supports Windows XP/7/Embedded/POS and Linux operating systems and can be further customized for OEM orders.

Picture, links and datasheet link:

http://www.habeyusa.com/EDM/7-22-2011_Habey_PPC-6512_EPR.html

Product Datasheet:

http://www.habeyusa.com/datasheet/PPC-6512.pdf

Expiration Yr.

3-5 years

Available at the following online retailers:

http://www.amazon.com/gp/product/B005E137E6

Features

Intel Atom Dual Core D525 1.8GHz
Nvidia ION2 GT218 Graphics w/ 512MB dedicated memory
2 DDR3 SODIMM slots
Steel Encased Touchscreen Panel PC
1.3 megapixel webcam
2 mini-PCIe slots (support half and full mini-PCIe cards)
HDMI+VGA video output, Dual Independent Display
1 Serial Ports
4 USBs, 1 eSATA, 1 LAN, S/PDIF
2.5″ Removable Hard Drive Tray
Supports Windows Home/Pro/Embedded & Linux O/S

Specifications:

Processor: Intel Atom D525 (1.80GHz, dual-core, 800 MHz FSB)

Chipset: Intel NM10 Express Chipset

Memory: 2x DDR3 SODIMM slots, support up to 4GB

Graphics (GPU): Nvidia ION2 GT218 Graphics w/ 512MB dedicated memory

Display: VGA+HDMI, Dual Independent Display

Storage: 2x 2.5″ internal SATA II ports, 1 2.5″ SATA removable Hard Drive Tray (thumb screws)

USB: 4x Rear/ 2x Internal USB2.0

COM: 1 x COM/RS-232

VGA: 1 x DB15, Display up to 2048×1536

HDMI: 1x HDMI, Display up to 2560×1600

Audio: HD Audio 5.1 Channel, Digital Audio HDMI, 1x SPDIF, 1x Mic-in, 1x Line-out interface

Expansion: 2x mini-PCIe slots

LAN: Realtek RTL8111D, 10/100/1000Mbps, 1x RJ45

Wireless: Optional via mini-PCIe/USB, not included

Power Switch: On/Off button

Power Supply: DC +12V, BIOS feature: Power upon AC loss

Cooling System: Low-profile heat-sink with Fan

OS Support: Windows Embedded XP/7, Windows XP/Vista/7 pro or home, Linux O/S

Mechanical & Environmental

Operation Temperature: -10 ºC – 50 ºC (14ºF – 122 ºF)

Storage Temperature: -40 ºC – 60 ºC (-40ºF – 140 ºF)

Relative Humidity: 5%~95%, 40ºC, non-condensing

Vibration: 0.5g rms/5~500Hz/ random operation

EMC: —

Dimension: 343mm x 235mm x 51mm (13.5″ x 9.25″ x 2″)

Net weight: 7.3 lbs

Materials: Aluminum + Steel

Coating Processes: Aluminum Oxidation

Mounting: 100×100 vesa mounts, Wall mount and Panel mount available on OEM order

Color: Black/Silver, custom color available on OEM order

This Habey USA 12″ Panel Pc is available in Amazon.com. You can directly order or Buy from here.
